Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.

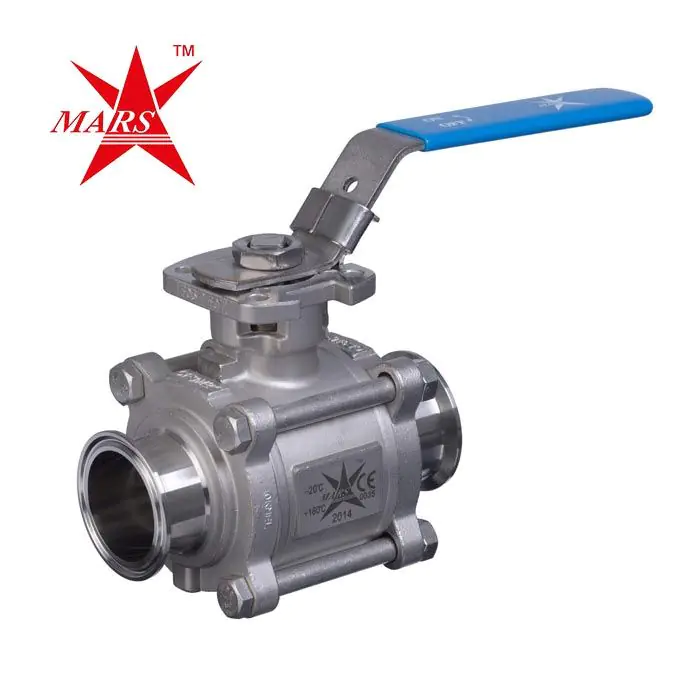

Mars Ball Valve Series 77SN 3 Piece Hygienic Tri-Clamp

Name: Mars Ball Valve Series 77SN 3 Piece Hygienic Tri-Clamp
Brand: Mars
SKU: BV5134
Price: 115.33 GBP

SKU

BV5134

Available to Order

Quantity

Key Features

For sanitary applications and on / off operation
Suitable for CIP / SIS in-line cleaning
Body material: Stainless Steel
End connection: Tri-Clamp
Cavity filled PTFE seat and ISO mounting top
Sizes: 1/2" to 4"
Temperature range: -20 °C to 180°C
Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI

View More Information
Download Datasheet
View Certs & Approvals

Datasheets

BV5134.pdf (Size: 1.6 MB)

Details

Mars Ball Valve Series 77SN 3 Piece Hygienic Tri-Clamp

Our Mars Ball Valve Series 77SN 3 Piece Hygienic Tri-Clamp is a fully maintainable hygienic three piece ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore valve with Stainless Steel body, cavity filled PTFE seats and ISO mounting top for actuation.

Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.

Live loaded stem packing compensates for wear and fluctuations.

All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.

Key features:

Available in Tri-Clamp, sizes: 1/2" to 4".
Temperature range: -20 °C to 180°C.
Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI.
Insulated grip, lockable lever handle.
Movement: 90° turn.

All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
