Burkert Type 8036 Inline PVC Flowmeter with Paddle Wheel

Details

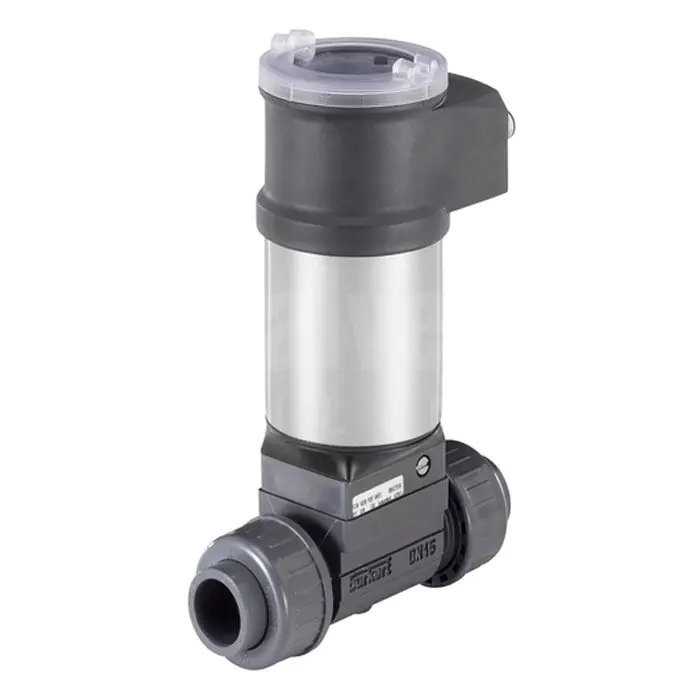

Burkert Type 8036 - Inline PVC Flowmeter with Paddle Wheel

PVC Flowmeter Type 8036 is a compact device, specially designed for measuring the flow rate in solid-free liquids. This flowmeter is available with or without Display and has:

2 configurable outputs, 1 x transistor output (NPN) and one 4 - 20 mA current output (2-wire)

Takes a 5-pin M12 male fixed connector

Type 8036 converts the measured signal, displays different values in different units (if display/configuration module mounted) and computes the output signals, which are provided via one or two M12 fixed connectors. Thanks to 1 or 2 transistor outputs, the flowmeter can be used to switch a solenoid valve, activate an alarm and, thanks to 1 or 2 current outputs, establish one or two control loops.

Options

3 configurable outputs, two transistor outputs (NPN/PNP) and one 4 to 20 mA current output (2-wire)

4 configurable outputs, two transistor outputs (NPN/PNP) and two 4 to 20 mA current outputs (3-wire)

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
