Stainless Steel Ball Valve with Spring Close Handle - WRAS Approved
SKU
BV5180
£45.38
Available to Order
Compatible file extensions to upload:
Key Features
- 2 Piece Stainless Steel Ball Valve
- Spring Close Handle
- CF8M Stainless Steel Body, Ball & Stem
- Screwed BSPP
- Sizes: 1/2" to 2"
- PN63 Rated
- Temperature -10°C to 180°C
- WRAS Approved
Related Products
Details

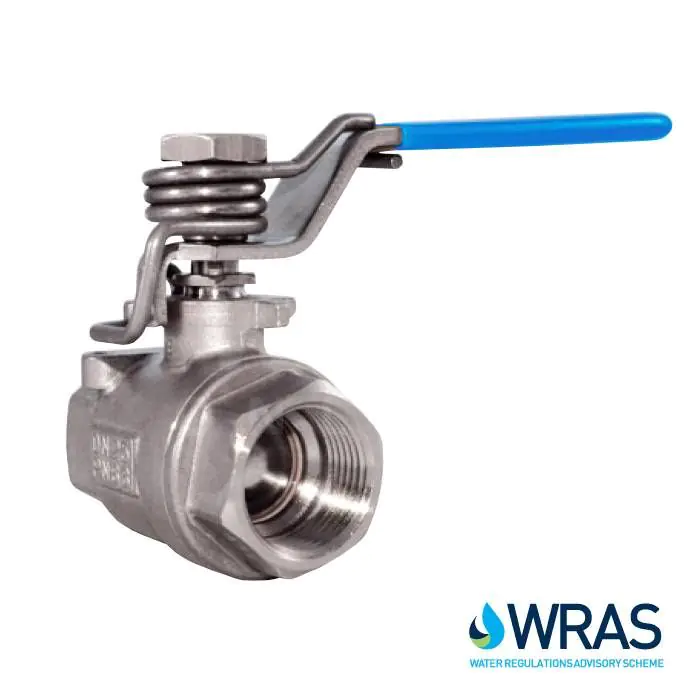

WRAS Approved Stainless Steel Ball Valve with Spring Close Lever
This reliable WRAS approved 2-piece stainless steel ball with a spring close lever (dead-mans handle) provides safe operation in both general industrial and chemical applications.
This full bore ball valve is manufactured in CF8M stainless steel with PTFE seats, offering low and smooth torque. The handle provides a safe and positive fail closed operation, offering reliable isolation.
Screwed BSPP end connections and full stainless steel contrition of the ball valve offers excellent corrosion resistance for extended service life.
Non Maintainable.
Key Features:
- 2 Piece
- Full bore
- Anti Blowout Stem
- Spring Close Handle
- CF8M Stainless Steel Body, Ball & Stem
- PTFE Seats & Seals
- Screwed BSPP
- Sizes: 1/2" to 2"
- PN63 Rated
- Temperature -10°C to 180°C
- WRAS Approved
Technical Attributes
| End Connection | BSP, BSPP |
|---|---|
| Body Material | Stainless Steel |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Size | 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50) |
| Design | 2 Piece, Full Bore, Female x Female |
| Industry / Approvals | WRAS |
| Lever | Spring Close Lever |
| Temperature Range | -10°C to 180°C |
| Pressure | PN63 Rated |
| Actuatable? | No - Manual only |
| Manufacturer | VOLT |
