WRAS Approved PVC Double Union Ball Valve

SKU
BV5560

in-stock Available to Order

Key Features
  • PVC-U Ball Valve
  • WRAS Approved
  • BSP Threaded, Imperial or Metric Solvent Socket
  • 1/2" to 3" & 20mm to 90mm
  • EN 1452 Part 3, DIN 2999, ISO 7/1

Related Products

GEMU N182 PVC-U Pressure Reducing Valve
GEMU N182 PVC-U Pressure Reducing Valve (DN10-DN50)
£492.85
View Product
PVC Y Type Strainer Double Union
PVC Y Type Strainer Double Union
£120.36
View Product
Brass Solenoid Valve 0.5-16 Bar Rated WRAS Servo Assisted 3/8" - 2"
WRAS Approved Brass Solenoid Valve - Normally Closed
£82.50
View Product

Details

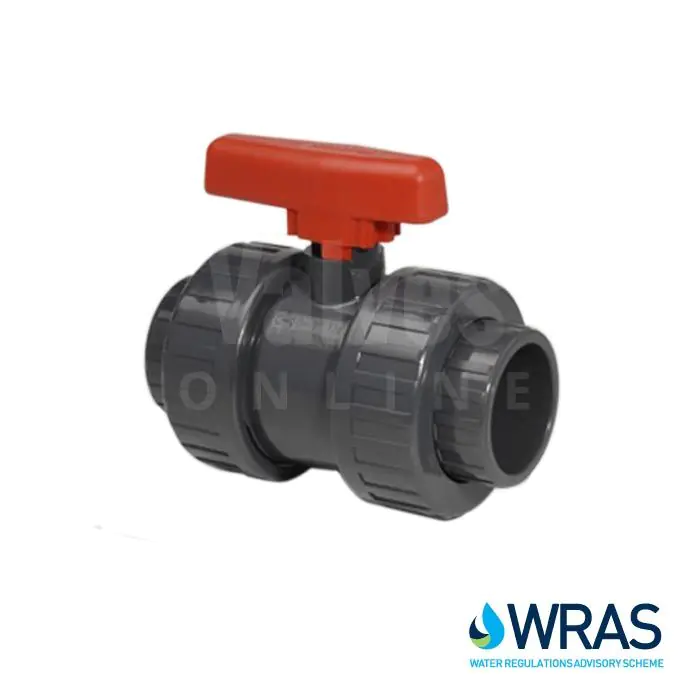

PVC-U Industrial WRAS Approved Double Union Ball Valve

Our PVC-U industrial double union ball valve is WRAS approved and available with a choice of BSP Threaded, Imperial or Metric Solvent Socket in sizes 1/2" to 3" and 20mm to 90mm.

This ball valve has WRAS Approval, with the material meeting the requirements of the Water Regulations Advisory Scheme for potable water. A valid certificate and approval number can be obtained upon request.

The chemical resistance properties of PVC-U are excellent and is resistant to most solutions of acids, alkalis, salts and solvents that can be mixed with water.

Key Features:

  • PVC-U
  • EPDM Seals
  • WRAS Approved
  • BSP Threaded, Imperial or Metric Solvent Socket
  • 1/2" to 3" & 20mm to 90mm
  • EN 1452 Part 3, DIN 2999, ISO 7/1

Approval

This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.

A valid certificate and approval number can be obtained upon request.

Datasheet:

 WRAS Approved PVC Double Union Ball Valve Datasheet

Technical Attributes

End Connection BSP, Imperial Solvent Socket, Metric Solvent Socket
Body Material PVC-U
Seal Material EPDM
Seat Material HYTREL
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm
Design Double Union
Industry / Approvals WRAS
Lever Manual Lever
Pressure Up to: 16 bar (1/2" to 2"), 10 Bar (2 1/2" to 3")
Manufacturer Plimat
