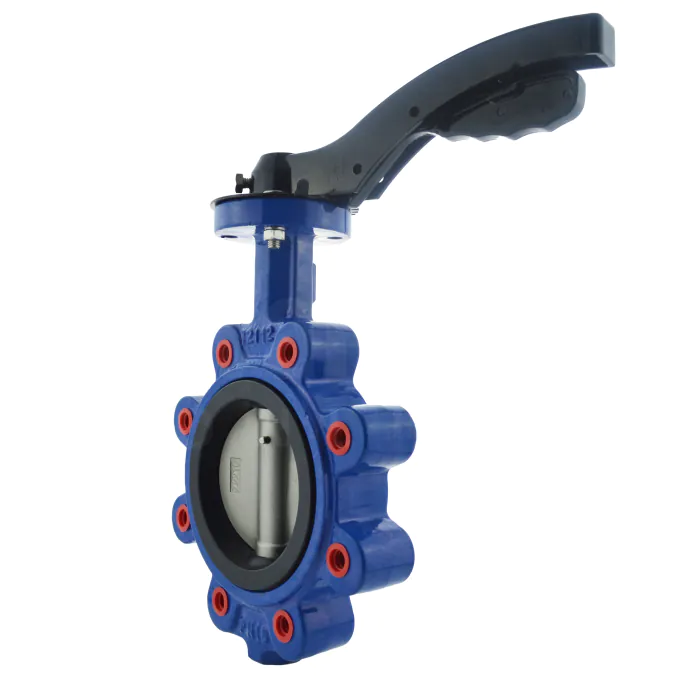

Economy WRAS Approved Lugged PN16 Butterfly Valve
SKU
BF4691
£34.78
Available to Order
Compatible file extensions to upload:
Key Features
- Economy Lugged & Tapped Butterfly Valve
- Ductile iron body
- 316 stainless steel disc
- EPDM liner
- Sizes: 1 1/2" to 12"
- Lockable lever and throttling notch plate or Gearbox
- Suitable for mounting between flanges: PN16
- WRAS Approved
Details
WRAS Approved PN16 Lugged & Tapped Butterfly Valve
An economy lugged and tapped butterfly valve with lever or gearbox operator suitable to fit on to PN16 flanges, having a ductile iron body, with stainless steel disc and EPDM liner. Available in sizes: 1 1/2" to 10" with lever and up to 12" with gearbox.
This valve is WRAS approved for use on drinking water, glycol mixes etc. Can be used on end of line service.
Working Temperature: -20°C to +120°C
Maximum Working Pressure: 16 bar
Key features:
- Ductile iron body
- 316 stainless steel disc
- EPDM liner
- Sizes: 1 1/2" to 12"
- Lockable lever and throttling notch plate, gearbox options
- Suitable for mounting between flanges: PN16
- Applications include water, glycol mixes and fluids compatible with valve materials.
- WRAS approved
Technical Attributes
| Design | Lugged, Lugged + Tapped |
|---|---|
| Flange Accommodation | PN16 |
| Body Material | Ductile Iron |
| Size | 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300) |
| Disc Material | Stainless Steel |
| Liner | EPDM |
| Industry / Approvals | WRAS |
| Manufacturer | VOLT |
| Main Features |
|
