Series 41R High Performance Butterfly Valve for Sugar Industry

Details

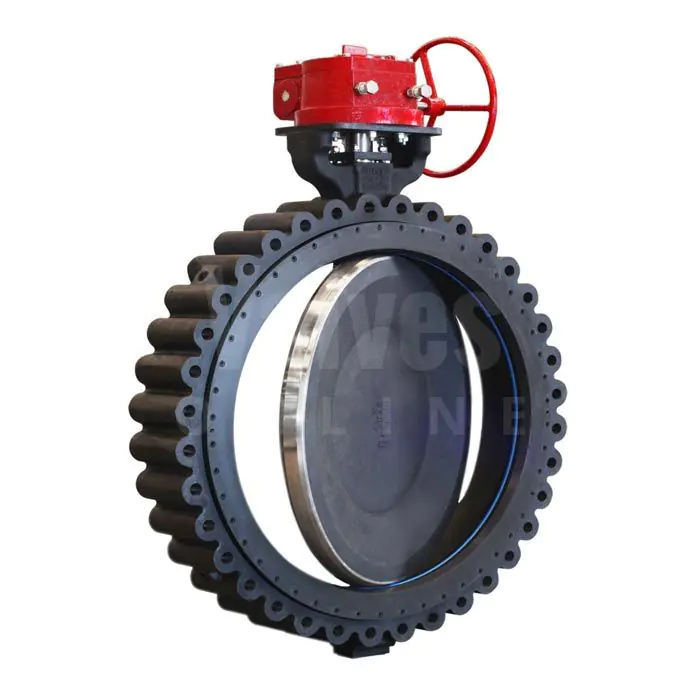

Bray Series 41R Double Offset High Performance Butterfly Valve

Valves Online are proud to offer the Bray/McCannalok line of specially designed high performance butterfly valves for the Sugar Industry.

These valves are structured to handle the low pressure steam of evaporators. This is also the same valve that for 30 years has proven to be the leader in double offset design for the process industry.

This valve incorporates the same proven design features of the standard Bray/McCannalok valve but in a lighter, more economical configuration specifically designed for the sugar industry steam services. It can be used along with the standard higher pressure Bray/ McCannalok butterfly valves and shares the same spare parts, thereby reducing the need for special or different inventory.

The Bray/McCannalok’s unique, patented design received Chemical Processing’s Vaaler Award for Best Product shortly after it was introduced. The simple, innovative design offers rugged reliability and extremely easy maintenance in the field. Independent and internal tests have proven Bray/ McCannalok’s superior service life capability, with zero leakage shutoff through over 100,000 cycles. The Bray/ McCannalok valves can be easily automated with manual, pneumatic or electric actuators.

• Steam Valves for Evaporators
• Evaporator Steam and Escape Valves
• 100% Bi-Directional Bubble-tight
• Large Cv
• Easy Automation
• Award-winning Design
• Lighter Weight

Specifications:

• Size Range: 16" - 54" (400mm - 1400mm)
• Body Style: Lug
• Temperature Range: -29°C to 260°C (-920°F to 500°F)
• Pressure Ratings: 100 PSI
• Shutoff Rating: Zero Leakage
• Body Materials: Phosphatized Ductile Iron
  Phosphatized Carbon Steel
• Disc Materials: Carbon Steel with Stainless Steel Edge
• Stem Materials: Stainless Steel
• Seat Materials: RTFE
• Applications: Sugar Industry

Datasheet:

 Bray Series 41R High Performance Butterfly Valve Datasheet
