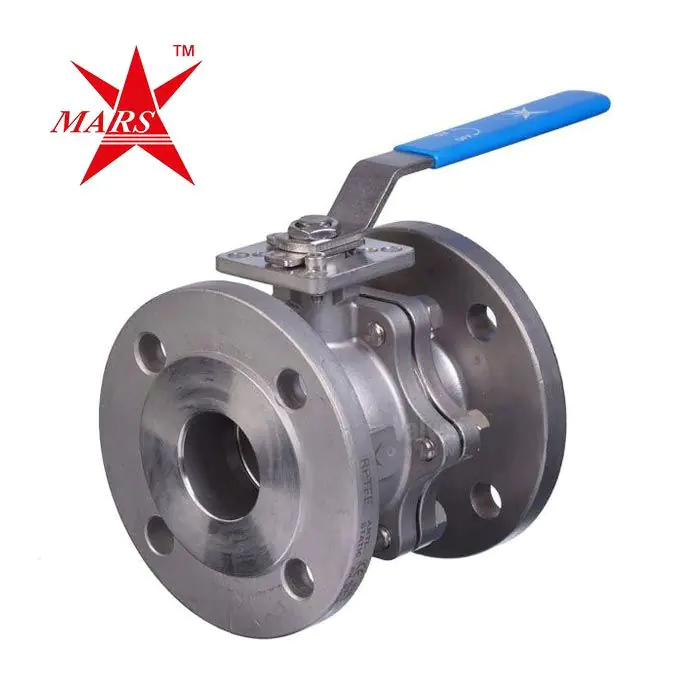

Mars Ball Valve Series 94D Flanged PN16 Direct Mount

Mars Ball Valve Series 94D Flanged PN16 Direct Mount

The Mars Series 94D-40 is probably one of the most popular and commonly requested flanged ball valves we offer and one that is used throughout many different industries.

Offering both quality and economy this 2 piece full flow ball valve is manufactured in stainless steel and flanged to PN16. The valve is equipped with an ISO mounting top for ease of actuation but is also supplied with a lockable lever handle.

RPTFE Seats (50% SS Filled PTFE Seats Option on request), self adjusting stem sealing and anti blow out stem are among the added benefits of this valve. Sizes range from ½” up to 4" (DN15 – DN100).

Our Mars Ball Valve Series 94D Flanged PN16 Direct Mount provides safe operation for both general and industrial chemical applications. A PN16 flanged, full bore, two piece valve with split Stainless Steel body, reinforced PTFE seat and ISO mounting top for actuation.

Key Features:

• Stainless Steel Body
• Reinforced PTFE Seat (Option for 50% St.St. Filled PTFE on request)
• Flanged PN16
• Sizes: 1/2" to 4"
• Temperature range: -20°C to +180°C
• Operating pressure: PN16 Rated
• Insulated grip, lockable lever handle
• ISO Direct Mount
• Movement: 90° turn
• Investment cast with low torque

Approvals:

• This valve conforms in accordance with the ATEX Declaration 94/9EC
• ISO 9001:2015
• CE/PED Pressure Equipment Directive
• API 607 Fire Test
• ISO 15848
• TA-Luft
• CRN Canadian Registration
