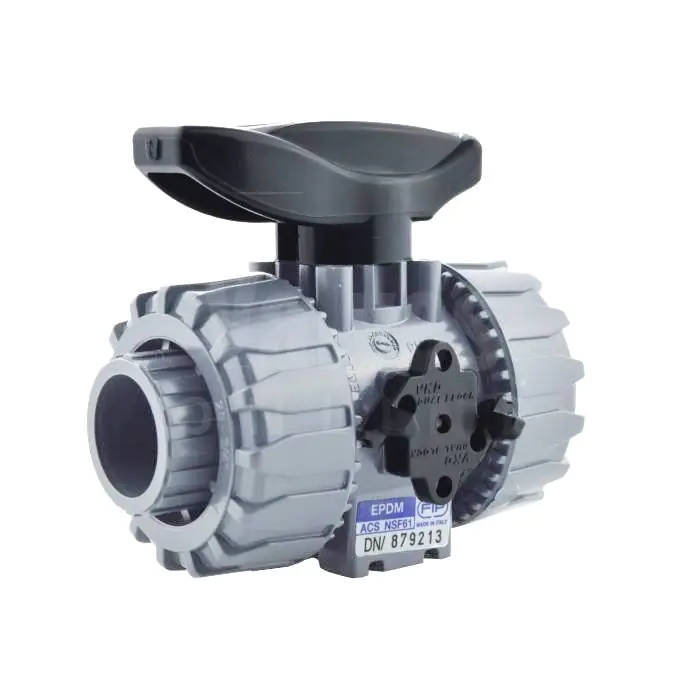

Durapipe VKDLA Imperial Solvent Socket ABS Ball Valve

VKDLA Double Union Ball Valve, BS Female Ends with ABS Body

Durapipe ABS Double Union Ball Valve with BS Imperial Solvent Socket End Connections and a choice of EPDM or FKM seals.

This ABS Plastic bodied VKD DualBlock® ball valve is a fully unionised valve that stands up to the most severe industrial applications and probably one of the most technically advanced on the market. Offering you peace of mind that is synonymous with Durapipe (FIP) products.

Easy removal of the valve body from the pipe system, allows replacement of the valve seals and seats without any additional equipment.

Pressure rating: Maximum working pressure: 16 bar at 20ºC.

The Imperial system is manufactured in accordance with the relevant British Standards: BS 5392 fittings.

Patented DualBlock® system: The locking device ensures the union nuts are retained in position, even under the most arduous conditions, i.e. vibration or thermal expansion. Patented Seat Stop® ball seat carrier, with micro adjustment of the ball seats and ‘take up’ of axial pipe loads, which can all be done without the need to drain the system.

Key Features:

• ABS Body
• Imperial Solvent Socket End Connections
• EPDM or FKM Seals
• Sizes: 1/2" to 2"
• Ends in Accordance with BS 5392
• DualBlock System
• Full Flow
• Fully Maintainable
• WRAS Approved

Datasheet:

 Durapipe VKDLA Imperial Solvent Socket ABS Ball Valve Datasheet
