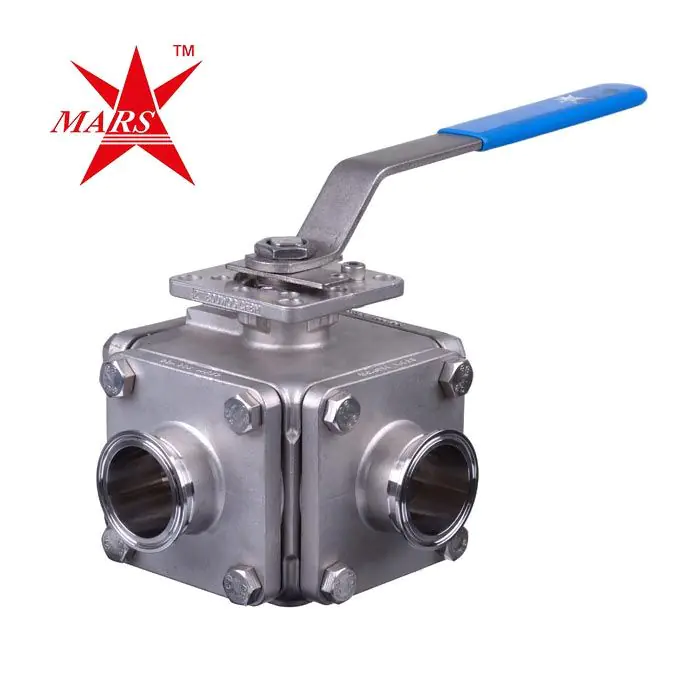

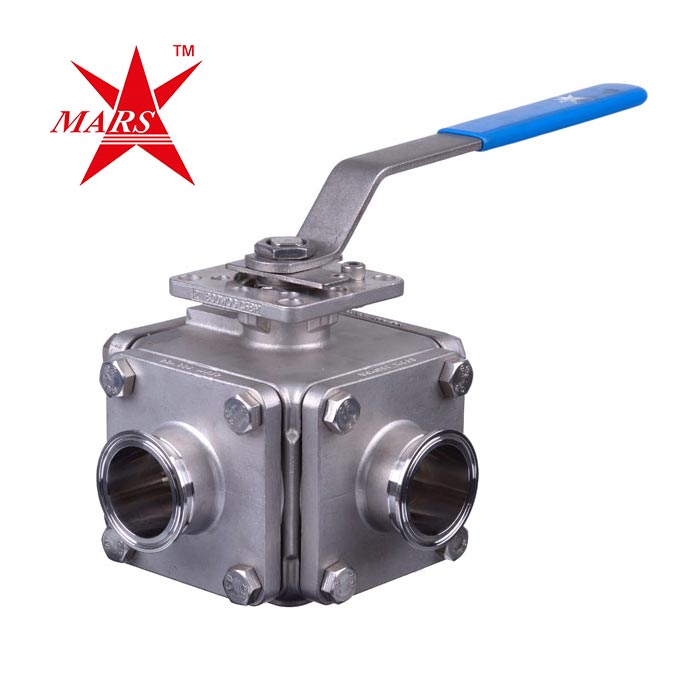

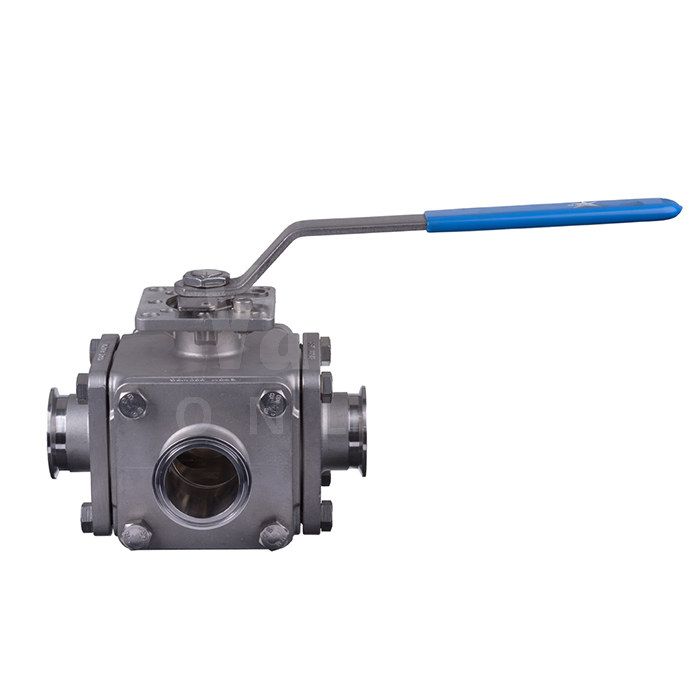

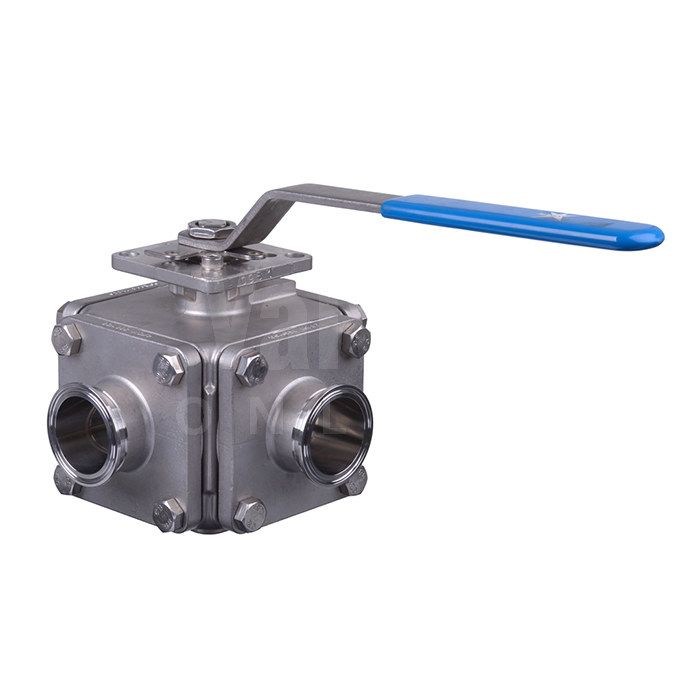

Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount Tri-Clamp

Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount Tri-Clamp

Our Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount Tri-Clamp is a fully maintainable hygienic ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore three way multiport valve with Stainless Steel body, cavity filled PTFE seats and ISO mounting top for actuation.

Live loaded stem packing compensates for wear and fluctuations.

All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.

Key features:

• Available in Tri-Clamp, L or T Port, sizes: 1/2" to 4".
• Temperature range: -20 °C to 200°C.
• Operating pressure: 800 PSI.
• Insulated grip, lockable lever handle.
• Movement: 90° turn.

All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.

Datasheet:

 Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount Tri-Clamp Datasheet
