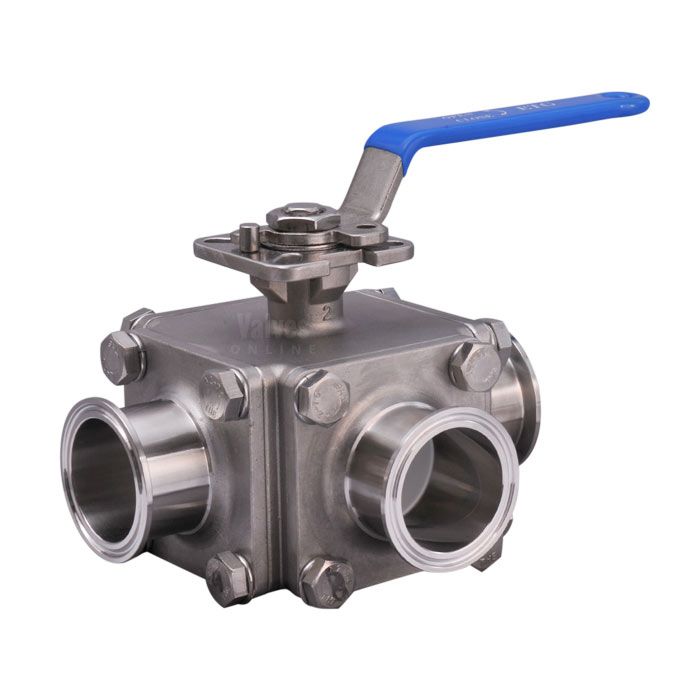

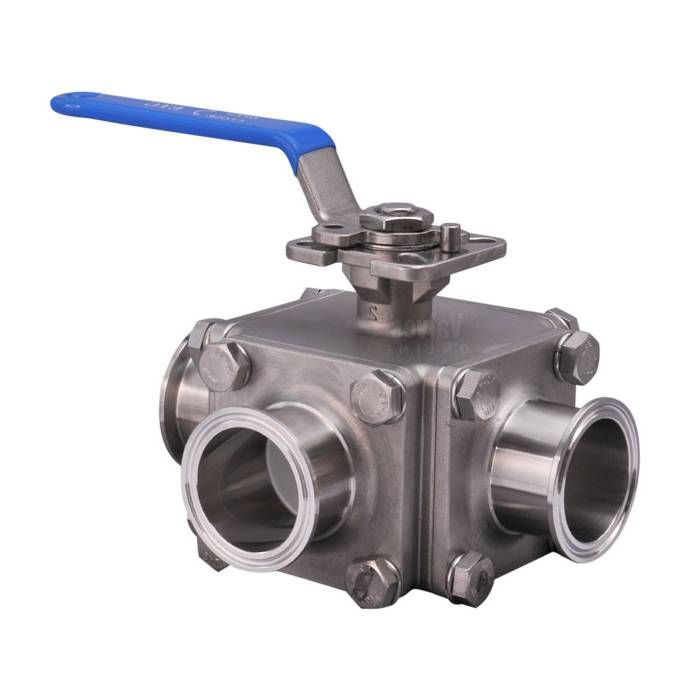

3 Way Sanitary Clamp End Direct Mount Ball Valve

Stainless Steel Ball Valve 3 Way Hygienic Direct Mount Clamp End

Our Stainless-Steel ball valve is a 3 Way sanitary valve with ISO 5211 direct mount top works and BS4825 Clamp End connections.

This valve is fully maintainable and particularly suited for on / off and diverting operation, in food processing, pharmaceutical and high velocity sanitary applications.

Classed as a high-performance valve it has the benefit of full bore up to 2”, with cavity filled PTFE seats and is supplied with a lockable lever handle.

Suitable for CIP / SIS in-line cleaning.

Key Features:

• ASTM A351 CF8M 316 Stainless Steel Body
• 316 Trim
• Three way, L or T Port
• ISO 5211 Mounting Top for Easy Actuation
• Cavity Filled Ball Seats
• Virgin PTFE Seals
• BS4825 Clamp End Connections
• Sizes: 1/2" to 2"
• Full Bore Suitable for use on Pigged Pipework
• Temperature range: See Chart
• Working pressure: up to 1000 PSI/G (see graph)
• Insulated grip, lockable lever handle.
• Movement: 90° turn.

All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.

Datasheet:

 Stainless Steel Ball Valve 3 Way Hygienic Direct Mount Clamp End Datasheet
