Electric Actuated Durapipe VKD PVC Ball Valve - with HQ004 Actuator

Details

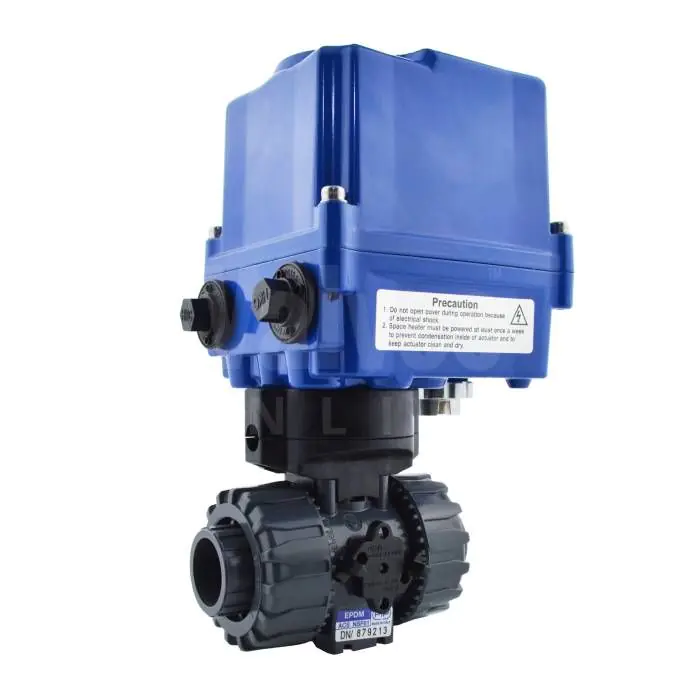

HQ004 Electric Actuator on VKD - PVC Double Union Ball Valve

An electrically actuated HQ004/VKD ball valve with PVC-U body from the FIP (Durapipe) VKD product range. Ideal for isolation duties, having a double union design making use of a unique ANTI-BLOCK systems that prevents and avoids ball blockages.

Suitable for processes up to 16 Bar at 20 °C using PVC-U pipework systems.

EPDM or FPM seals are offered as standard, offering options for use with many inorganic chemicals and processes across industries such as Water Treatment, Chemical Processing, Energy and associated industries.

This ball valve holds WRAS Approval.

Key Features:

• HQ004 Electric Actuator
• PVC Valve Body
• Full Flow
• EPDM or FKM Seals
• Spring Return or Double Acting HP Actuator
• BSP, Imperial & Metric End Connections
• Sizes: 1/2" to 2" & 16mm to 63mm
• PN16 Pressure Rated
• 24V AC & Dc, 110V & 230V Options

Datasheet:

 Electric Actuated Durapipe VKD PVC Ball Valve - with HQ004 Actuator Datasheet
