Cast Iron Flanged Axial Disc Check Valve

SKU
CV5183

in-stock Available to Order

Key Features
  • Axial Disc Check Valve
  • Cast Iron body
  • Flanged
  • Sizes 2" up to 12"
  • WRAS approved

Related Products

Axial Disc Double Check Valve
Axial Disc Double Check Valve
£507.17
View Product

Details

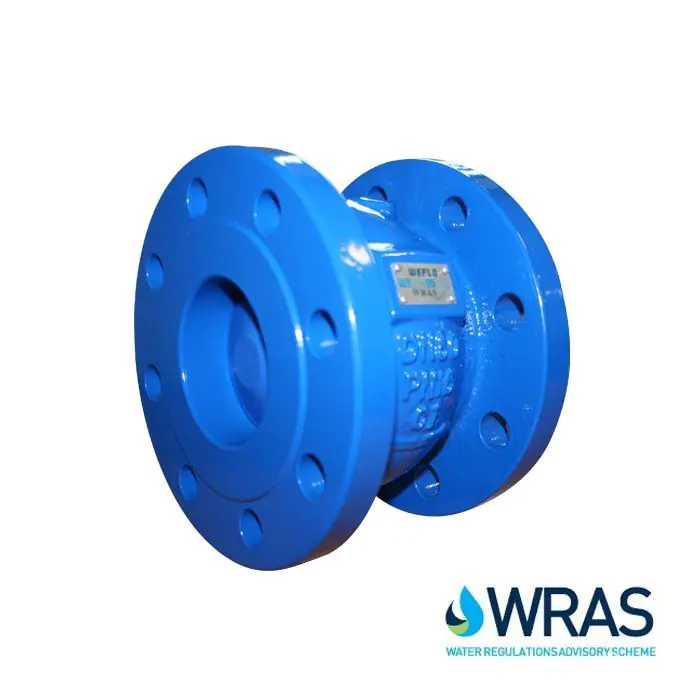

Cast Iron Flanged Axial Disc Check Valve

Our Cast Iron Flanged Axial Disc Check Valve is suitable for water industry applications including pumping and water distribution. A WRAS approved valve with Cast Iron, epoxy coated body and EPDM seal.

Installed either vertically (upwards only) or horizontally.

Key features:

  • Available in sizes: 2" up to 12".
  • Temperature range: -10°C to 120°C.
  • Pressure rating: PN16 rated

For full details please download the accompanying datasheet.

Approval

This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.

A valid certificate and approval number can be obtained upon request.

Datasheet:

 Cast Iron Flanged Axial Disc Check Valve Datasheet

Technical Attributes

End Connection Flanged PN16
Design / Type Axial Disc Check
Industry / Approvals WRAS, Water Works
Body Material Cast Iron
Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Manufacturer VOLT
Main Features
  • 2" to 12"
  • PN16 Rated
  • WRAS Approved
