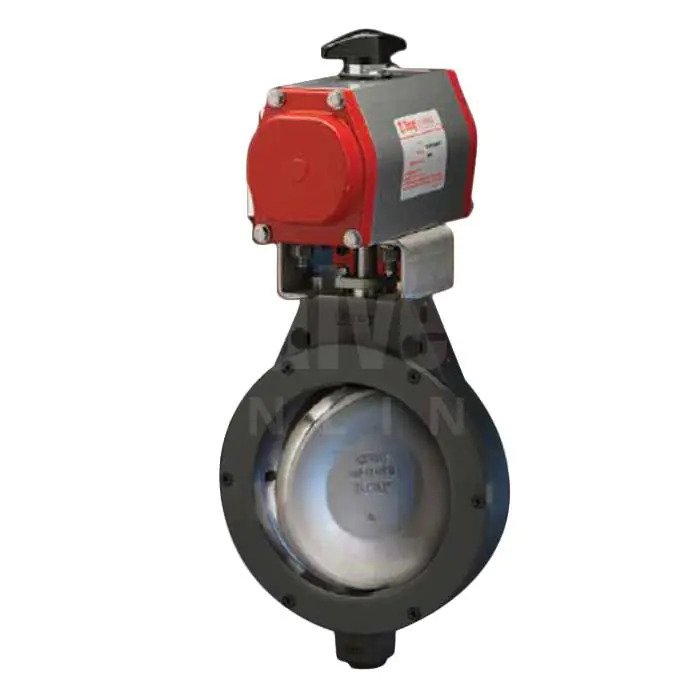

Bray Pneumatic Actuated Butterfly Valve Series 40 Double Offset Carbon Steel

Details

Pneumatic Actuated High Performance Double Offset Carbon Steel Wafer Butterfly Valve

This Bray Series 40 Pneumatically Operated Wafer Pattern Double Offset Butterfly Valve is designed to handle a wide range of conditions and media such as corrosive chemicals, water, gases, acids, alkalis, hydrocarbons plus many other fluids. Suitable for temperatures up to 260°C and available to fit between PN16 and ANSI 150 drillings. Body in Carbon Steel, with Stainless Steel Disc and RTFE + Silicone Seats.

Fitted with a powerful pneumatic, spring return or double acting actuator.

This high performance wafer pattern double offset butterfly valve offers zero leakage shut-off. This unique valve
delivers the highest quality and value available for meeting today’s demanding requirements. Temperatures range from -62°F to 500°F (-52°C to 260°C).

Bray high performance butterfly valves offer a lightweight and simple to install alternative to more tradition, bulkier designs including ball and globe valves.

Suitable to fit between PN16 and ANSI 150 flanges.

Key Features:

• Bray Pneumatic Actuated Butterfly Valve
• High Performance
• Bray Series 40
• Wafer Pattern
• Double Offset
• Carbon Steel Body
• Stainless Steel Disc
• RTFE Liner
• Double Acting or Spring Return Options
• Sizes: 2" to 12"
• To fit between PN16 & ANSI 150 Flanges
• Temperature: -52°C to +260°C

Datasheet:

 Bray Double Offset Valve PN Dimensions

 Bray Double Offset Valve ANSI Dimensions
