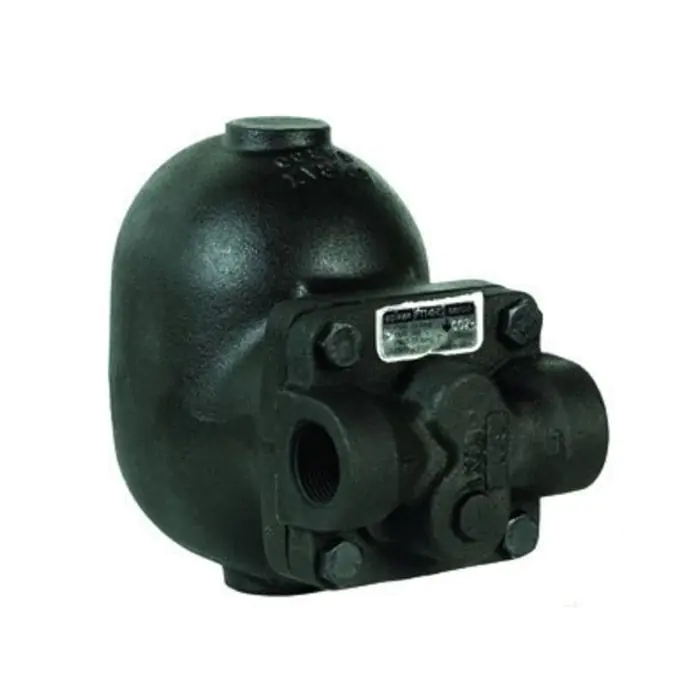

Spirax Sarco FT14 Ball Float Steam Trap

Details

Spirax Sarco FT14 Ball Float Steam Trap

Spirax Sarco's FT14 Ball Float Steam Trap is designed to offer perfect condensate drainage and air venting for process, heating and mains drainage applications. It's also one of the most popular mechanical steam traps in the world!

Benefits from an integral automatic air vent (TV) with flow direction right to left as standard. Cast Iron body in PN16 Screwed BSP. Available in 4.5 bar (FT14-4.5), 10 bar (FT14-10) and 14 bar (FT14-14).

Typical applications include heat exchangers, separator drainage and rotating drying cylinders.

Key features:

• Easy to replace: dimensionally interchangeable with the FT14. No live steam loss Achieved by self-aligning valve and water seal.
• Erosion resistant: Improved design with simplified flow paths to reduce erosion.
• Effective condensate drainage: modulating valve orifice mechanism that provides complete and immediate condensate removal under all positive pressure load conditions.
• Quick start-up: integral air vent for maximum venting of air to improve productivity.
• High quality product: improved materials and surface finish offer a high quality product Impact resistant Strong float construction guaranteed against waterhammer.
• Available in sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2".
• Maximum temperature: 220°C.
• Gasket material – Graphite.

Datasheet:

 Spirax Sarco FT14 Ball Float Steam Trap Datasheet
