Gresswell S2000 Dome Top Full Lift Safety Relief Valve

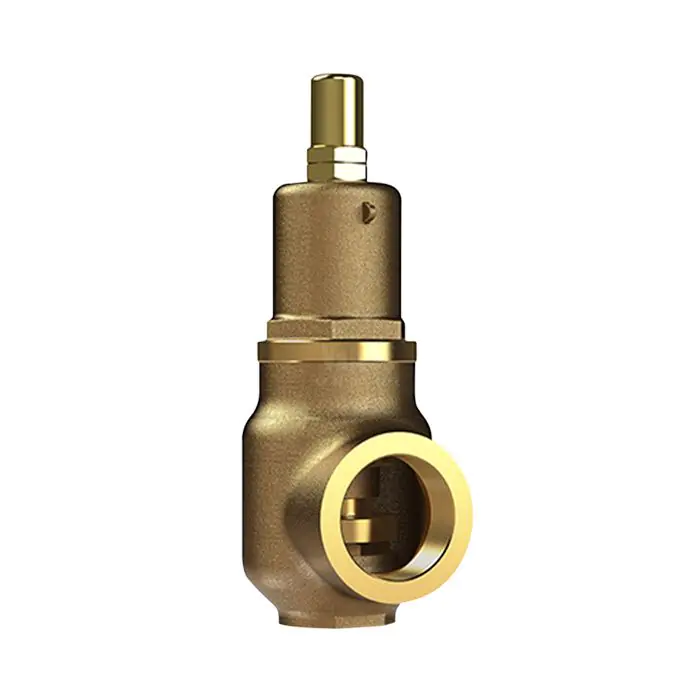

Gresswell's S2000 Dome Top Full Lift Safety Relief Valve suitable for liquid, steam and gas; used to prevent excess pressure build up in systems providing maximum flow rates.

Being a full lift valve the flow rates are very high in comparison to more traditional safety relief valves.

Typical applications include: steam boilers, pipelines and vessel protection.

Key features:

• Available in Bronze, sizes: 1/2" to 2" (subject to configuration).
• Temperature range: -23°C to 200°C (Viton) and -90°C to 225°C (Metal).
• Pressure range: Up to 12.4 Bar, (High pressure 12.4 to 27 Bar - available upon request - please call 01822 855600)
• Full Cat IV PED approval.

Gresswell Valves are quality assurance approved to BS EN ISO 9001: 2008 and manufactured in accordance with BS EN ISO 4126-1 & BS6759.

Datasheet:

 Gresswell S2000 Dome Top Full Lift Safety Relief Valve Datasheet
