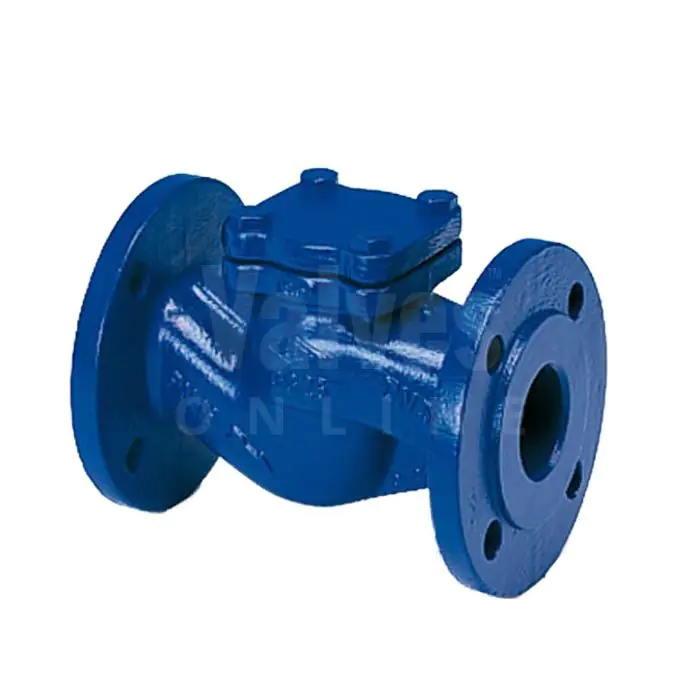

PN16 Cast Iron ARI CHECKO-V Non-return Check Valve

SKU
CV5419

in-stock Available to Order

Key Features
  • PN16 Cast Iron ARI CHECKO-V Non-return Check Valve
  • Fig. 12.003 Check Valve with metallic sealing
  • PN16 Flanged Connection
  • Cast Iron (EN-JL1040) Body
  • Up to 300°C Temperature Rated
  • DN15 to DN300 (½” to 12”) Available

Details

PN16 Cast Iron ARI CHECKO-V Non-return Check Valve

The ARI CHECKO-V check valve utilises a sprung piston type closure to prevent backflow.

Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil.

Options available upon request include PTFE plug design (max 200°C) and special flange drillings.

Key Features:

  • PN16 Flanged Connection
  • Cast Iron (EN-JL1040) Body
  • Up to 300°C Temperature Rated
  • DN15 to DN300 (½” to 12”) Available

Datasheet:

 PN16 Cast Iron ARI CHECKO-V Non-return Check Valve Datasheet

Technical Attributes

End Connection Flanged PN16
Design / Type Piston Check
Industry / Approvals High Temperature
Body Material Cast Iron
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Manufacturer ARI-Armaturen
Main Features
  • DN15 to DN300 (1/2” to 12”)
  • Up to 300°C
  • PN16 Rated
