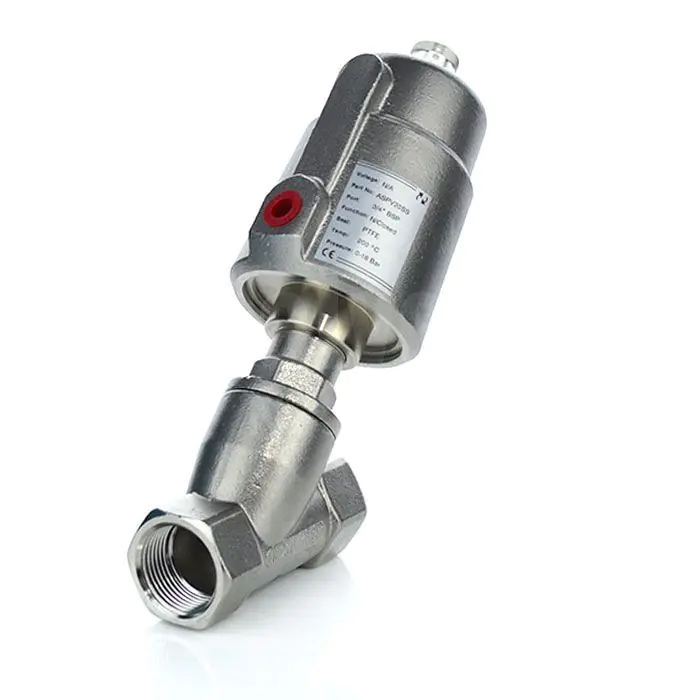

Economy Angle Seat Piston Valve with Pneumatic Actuator

Economical Pneumatic Angle Seat Piston Valve

The VOLT Pneumatic Angled Seat Valve or sometimes called a ‘Piston Valve’ offers unbeatable quality coupled with low cost. The valve is manufactured in stainless-steel (body, piston and actuator) air operated and suitable for on/off control of air, water, oil and steam with applications up to 200°C.

Sizes range from 3/8" to 2 1/2" with Screwed BSP Connections. Easy to operate and works in conjunction with our banjo pilot valves in 3/2 function for single use or manifold bank of 3/2 valves for multi-systems.

This rugged engineered piston valve is designed for unmatched cycle life found in many industrial applications, offering superior performance and reliability. Offered in a normally closed fail-safe function (closes on loss of air failure and if using a pilot valve on electrical failure).

Key Features:

• Stainless Steel Body, Piston and Actuator
• Pneumatic Piston Globe Y Pattern Valve
• PTFE Seals
• 2 Way Direct Acting
• Water hammer - free
• Spring Close - Air Open
• Screwed BSP Connections
• Optical Indicator
• Temperature up to 200°C
• Sizes: 3/8" to 2 1/2"
• Pressure up to 16 bar

Datasheet:

 Economy Angle Seat Piston Valve with Pneumatic Actuator Datasheet
