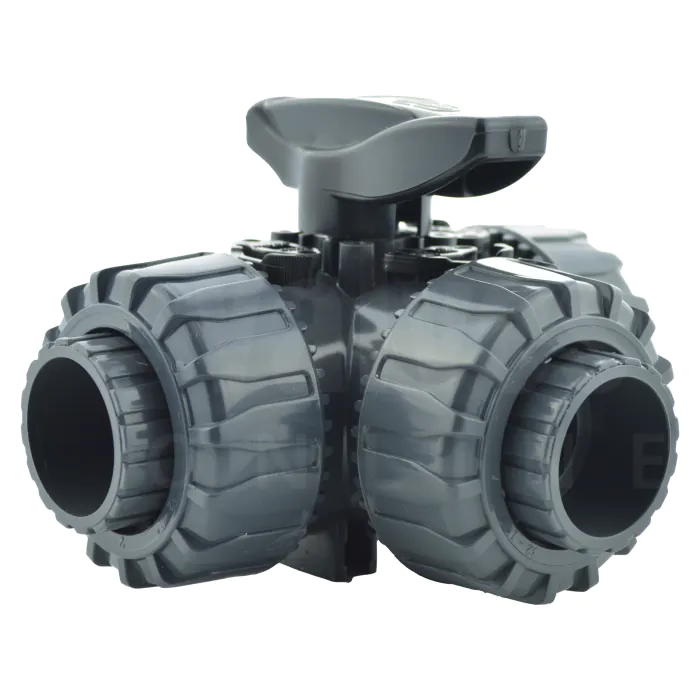

Durapipe TKD 3 Way PVC Imperial Solvent Socket Ball Valve

SKU
BV5526
£166.77

in-stock Available to Order

Key Features
  • Aliaxis Durapipe FIP 3 Way Ball Valve
  • PVC Body
  • 3 Way
  • T-Port or L-Port
  • Imperial Solvent Socket
  • EPDM or FKM Seals
  • Sizes: 1/2" to 2"

Details

Durapipe TKD 3 Way PVC Imperial Solvent Socket Ball Valve

The Aliaxis Durapipe TKD 3 Way PVC Imperial Solvent Socket Ball Valve is designed for installation in piping systems, suitable for water and non-hazardous media; corrosive, inert, gaseous and liquid media which have no negative impact on the physical and chemical properties of the body and seal material.

Parts that come into contact with the medium are manufactured from high-grade plastics making them ideally suited to corrosive media.

This 3-way valve is available with T-Port or L-Port configurations and is available with FKM or EPDM seal materials.

Pressure rating: Maximum working pressure: 16 bar at 20ºC.

Key Features:

  • PVC Body
  • 3 Way
  • T-Port or L-Port
  • EPDM or FKM Seals
  • DualBlock System
  • True Union
  • Sizes: 1/2" to 2"

Technical Attributes

End Connection Imperial Solvent Socket
Body Material PVC-U
Seal Material EPDM or FKM
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Design 3 Way
Manufacturer Durapipe
Main Features
  • L or T Port
  • Imperial Solvent Socket
  • Sizes: 1/2" to 2"
