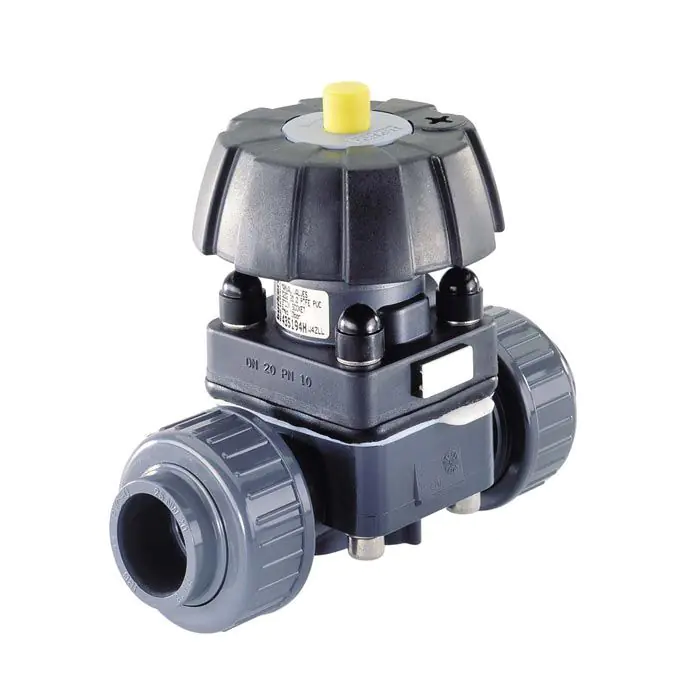

Burkert Type 3232 Manual Plastic Diaphragm Valve
SKU
BU3232
Price on Application
For pricing and availability please contact us on:
01822 855 600.
Key Features
- Burkert Type 3232 Plastic Diaphragm Valve
- manually operated, 2/2 Way Diaphragm Valve
- Body material: PVC, Polypropylene (PP)
- Seal material: EPDM or PTFE/EPDM
- Sizes: 20mm (Orifice: 15mm) to 63mm (Orifice: 50mm)
- End connections: True Union or Spigot (PP)
Details
Burkert Type 3232 Manual Plastic Diaphragm Valve
Suitable for aggressive and/or corrosive media, the Burkert Type 3232 Manual Plastic Diaphragm Valve benefits from a flow-optimised body, PPS bonnet and PPS handwheel.
A 2/2 way manual diaphragm valve with no dead volume, available in: PVC or Polypropylene (PP) body with EPDM or PTFE / EPDM seals. Continuous adjustment of flow can be easily undertaken using the built-in handwheel.
Installed as required or tilted 5 to 30° to the horizontal and inclined 3 to 5° to the flow direction for self-draining operation.
PVC Diaphragm Valve
True Union connection PVC Diaphragm Valve featuring EPDM or PTFE / EPDM seals.
- Pressure range at 20° 0-10 Bar, 2" size at 20° 0-7 Bar
- Available in sizes: 20mm (Orifice: 15mm) to 63mm (Orifice: 50mm)
- True Union End Connection (Spigot available on request)
Polypropylene (PP) Diaphragm Valve
True Union or Spigot connection Polypropylene (PP) Diaphragm Valve featuring EPDM or PTFE / EPDM seals.
- Pressure range at 20° 0-10 Bar, 2" size at 20° 0-7 Bar
- Available in sizes: 20mm (Orifice: 15mm) to 63mm (Orifice: 50mm)
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical Attributes
| Body Material | PVC-U, PP |
|---|---|
| Diaphragm Material | EPDM, PTFE / EPDM |
| End Connection | Spigot, True Union |
| Size | 3/4", 1", 1 1/4", 1 1/2", 2" |
| Manufacturer | Burkert |
