Resilient Seat Gate Valve

SKU
GV5008
£179.91

in-stock Available to Order

Key Features
  • Ductile Iron body
  • Resilient Seat
  • EPDM seat
  • Flanged PN16
  • Sizes 2" to 12"
  • WRAS approved

Details

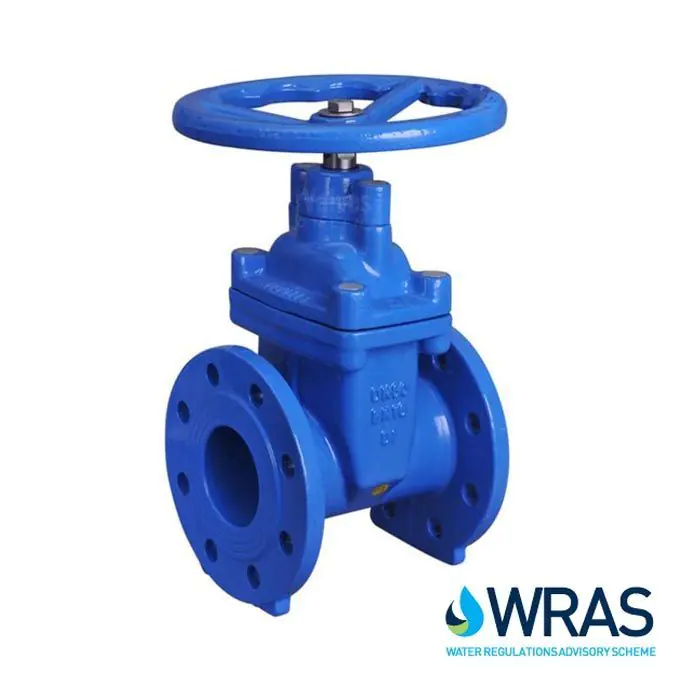

Resilient Seat Gate Valve

Our Resilient Seat Gate Valve is suitable to fit between PN16 flanges and designed for general purpose, HVAC and industrial applications; drinking water, potable water, sea water, air conditioning, heating, irrigation, sewage and fire fighting systems. A flanged, handwheel operated manual gate valve with epoxy coated Ductile Iron body, bonnet and Stainless Steel stem.

Commonly used underground due to the hard wearing fusion bonded epoxy coating.

A maintenance free valve. Complies with BS5163 standards. Flanged to BS4509.

Key features:

  • Available in sizes: 2" to 12" (EPDM).
  • Ductile Iron body and bonnet with Stainless Steel stem.
  • Temperature range: -10°C to 70°C.
  • Pressure rating: PN16.
  • WRAS approved.

Approval

This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.

A valid certificate and approval number can be obtained upon request.

Datasheet:

 Resilient Seat Gate Valve Datasheet

Technical Attributes

End Connection Flanged PN16
Body Material Ductile Iron
Size 2", 2 1/2", 3", 4", 6", 8", 10", 12"
Industry / Approvals WRAS, HVAC, Marine, Water Works
Design Resilient Seated
Manufacturer VOLT
Main Features
  • 2" to 12"
  • Flanged PN16
  • WRAS Approved
